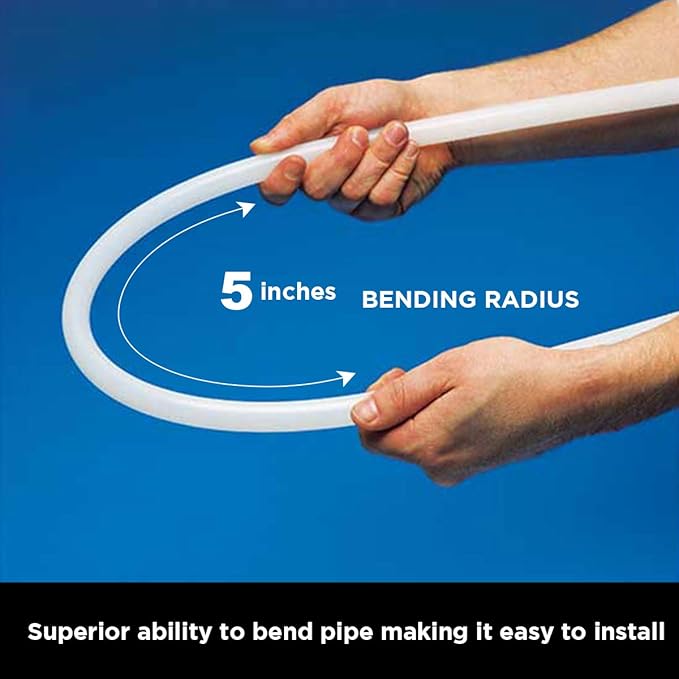

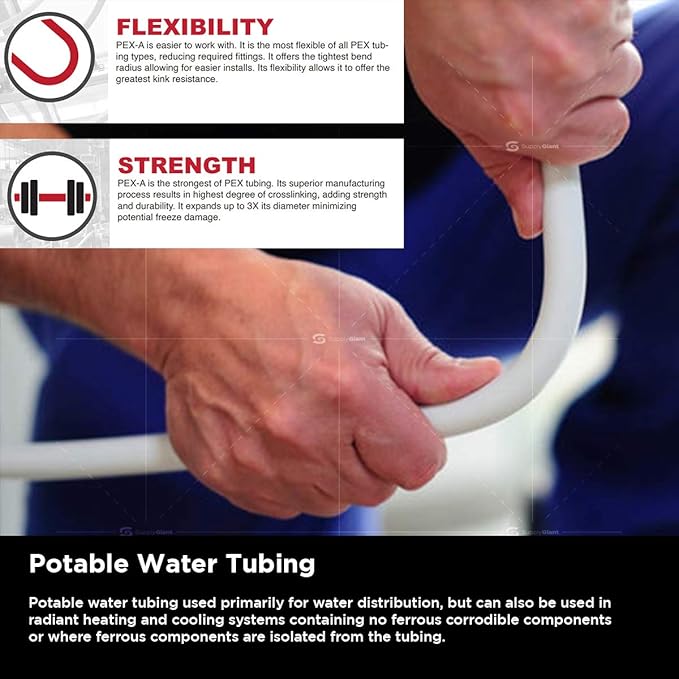

Flexible PEX A Tubing: PEX-A is the most Flexible of all Pex Tubing types, Reducing Required Fittings and kinked Tubing instances. Flexible PEX-A Tubing offers the tightest bend randius- as little as 3-1/2" for 1/2" Tubing- and allows for easier Installation and Repair.
Approvals: Complies to ANSI, ASTM, CAN/ULC, CSA. Standards and ratings marked every 5 feet on the pex Tubing.
Compatibility : Pex pipe is Compatible with F1960/Pex A, F1807/Pex B, expansion and crimp, plastic, and Brass, and can be joined by Clamp or Sleeve methods.
Specifications: Minimum Temperature rating 73 Degrees at 160 PSI, Maximum 200 Degrees at 80 PSI. Approved for Water service lines and burial Applications- including burial under concrete.

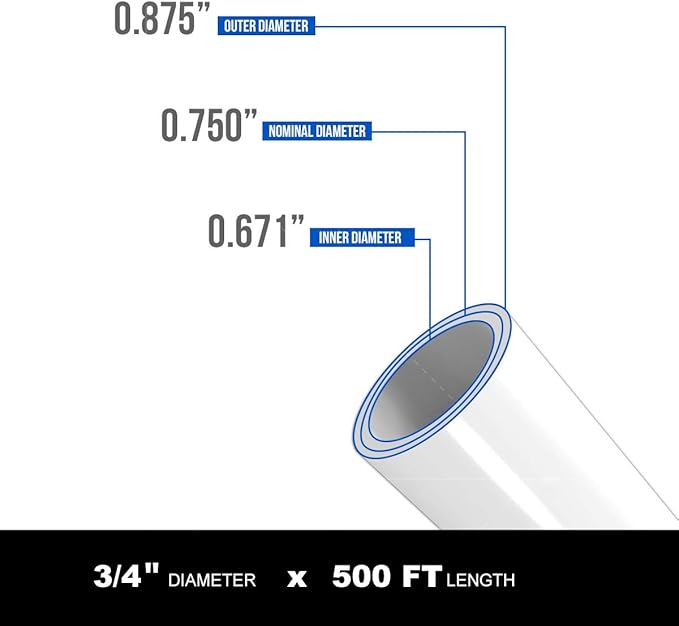

PEX Tubing Size: 3/4 Inch x 500 Feet- 0.671" inner diameter (ID) 0.875" outer diameter (OD) 3/4" nominal diameter. Crack Resistant and Freeze Resistant Material can expand and then shrink back to normal size, and coil will easily straighten back to its original shape.
