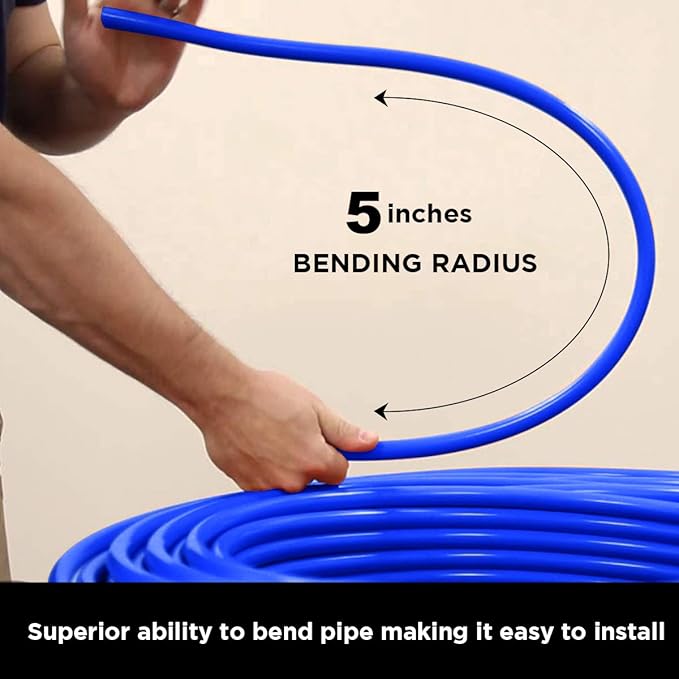

Flexible PEX A Tubing: PEX-A is the most Flexible of all Pex Tubing types, Reducing Required Fittings and kinked Tubing instances. Flexible PEX-A Tubing offers the tightest bend randius- as little as 3-1/2" for 1/2" Tubing- and allows for easier Installation and Repair.
Approvals: Complies to ANSI, ASTM, CAN/ULC, CSA. Standards and ratings marked every 5 feet on the pex Tubing.
Compatibility : Pex pipe is Compatible with F1960/Pex A, F1807/Pex B, expansion and crimp, plastic, and Brass, and can be joined by Clamp or Sleeve methods.
Specifications: Minimum Temperature rating 73 Degrees at 160 PSI, Maximum 200 Degrees at 80 PSI. Approved for Water service lines and burial Applications- including burial under concrete.

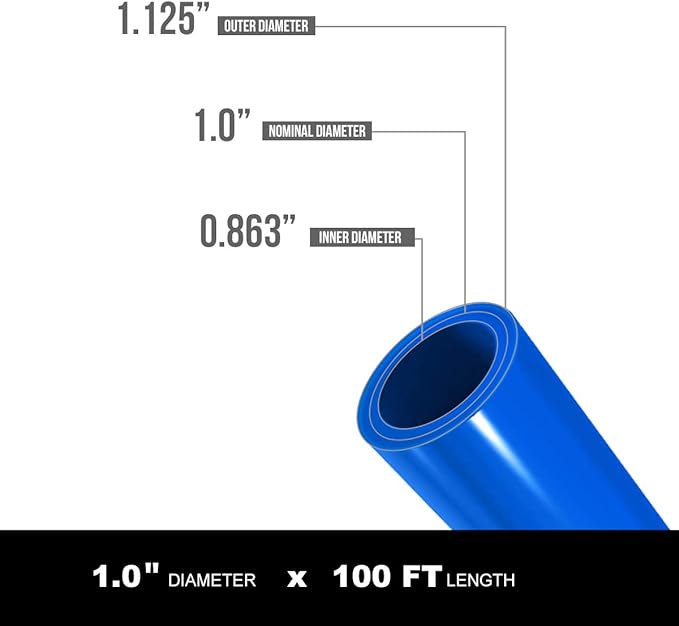

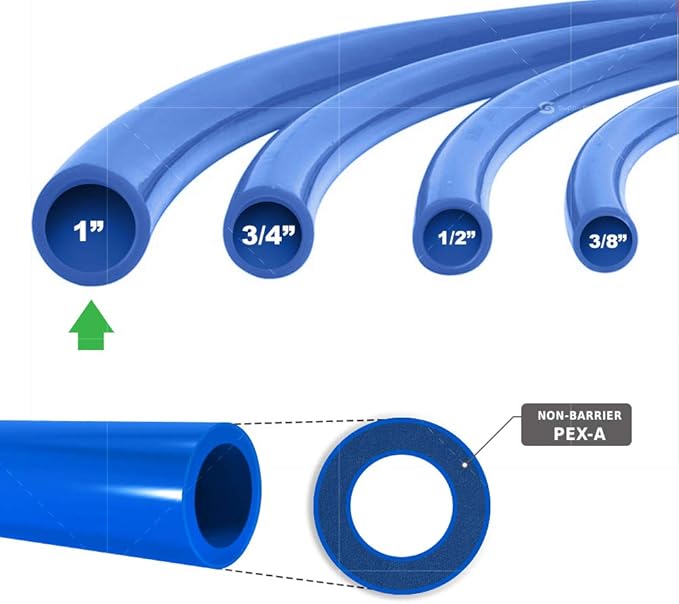

PEX Tubing Size: 1 Inch x 100 Feet- 0.862" inner diameter (ID) 1.125" outer diameter (OD) 1" nominal diameter. Crack Resistant and Freeze Resistant Material can expand and then shrink back to normal size, and coil will easily straighten back to its original shape.
